BX/BJ

FULL CONE NOZZLE – NOZZLE TIPS

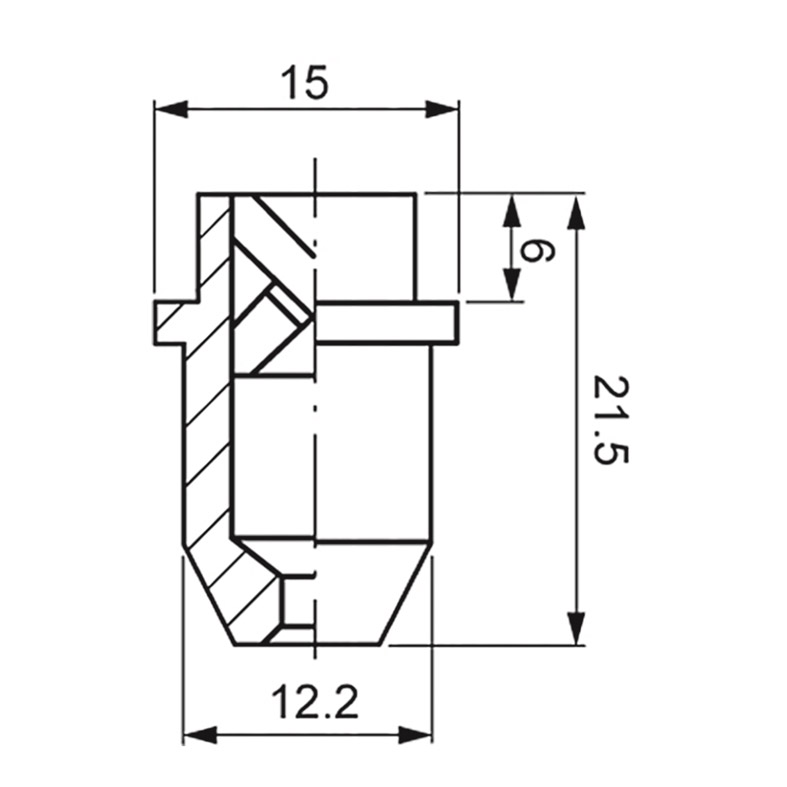

BX BJ full cone nozzles create a uniform, full cone-shaped spray with a circular impact area. Their design allows for easy disassembly and cleaning in case of clogging. These nozzles feature an X-vane securely positioned inside the body for thread sizes up to 3/8″.

For the BX BJ full cone nozzle, there are also sister products available with a 3/8″ female thread. In the steel industry, spray nozzles mounted on water pipes are prone to damage during the manufacturing process.

PNR provides an optimal solution to this issue: the BJ series nozzles can be customized to meet customer requirements. If welded tips are no longer in use, BJ nozzles can replace BX nozzles, offering identical technical specifications and jet length.

To switch between models, simply update the product code, e.g., BXQ 1372 T1 → BJQ 1372 T1.

BX-BJ.pdf

For more information, click the pdf for data sheet.

Angle

Code

D
mm

Capacity (l/min) at different pressure values (bar)
1.0	2.0	3.0	5.0	10.0

Spray angle (°) at pressure (bar)
1.5	3.0	6.0

60°

BXQ 1149 xx

1.3

0.86

1.22

1.49

1.92

2.72

50°

45°

BXQ 1223 xx

1.7

1.29

1.82

2.23

2.88

4.07

65°

49°

BXQ 1262 xx

1.7

1.51

2.14

2.62

3.38

4.78

50°

46°

BXQ 1372 xx

2.1

2.15

3.04

3.72

4.80

6.79

65°

59°

BXQ 1508 xx

2.4

2.93

4.15

5.08

6.56

9.27

50°

46°

BXQ 1626 xx

2.9

3.61

5.11

6.26

8.08

11.4

60°

55°

BXQ 1743 xx

2.9

4.29

6.07

7.43

9.59

13.6

67°

61°
