KYA

These special nozzles are used to obtain a satisfactory cooling of the rolls on casting machines with high values of width. The direction of the two jets is designed to achieve the maximum cooling efficiency over long distances.

For more information, click the pdf for data sheet.

Code
Capacity (lpm) at different pressure values (bar)
1.02.03.04.05.06.07.010.0

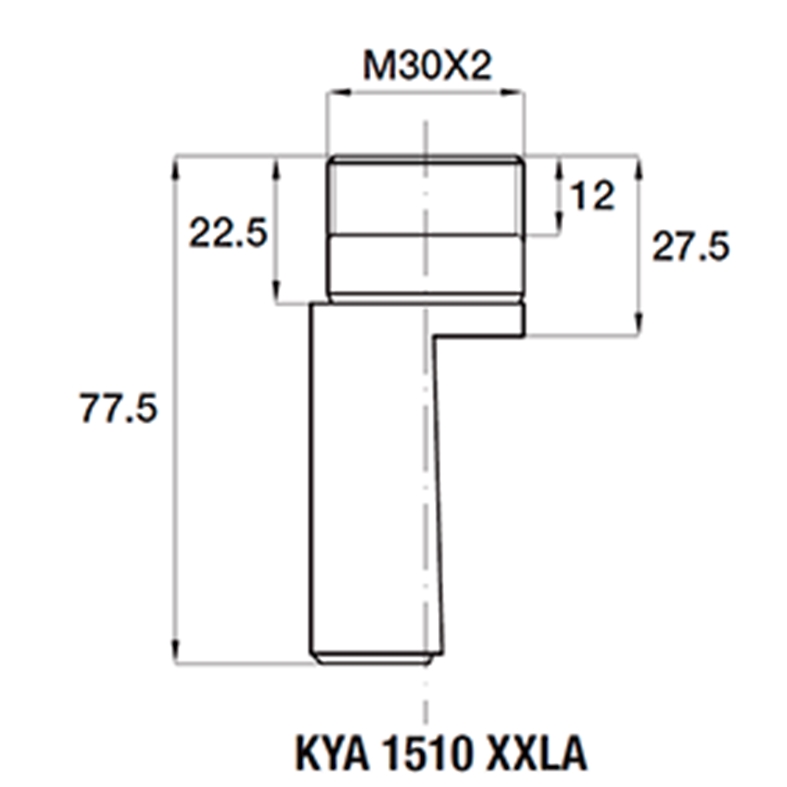

KYA 1510 xx
2.944.165.105.896.587.217.799.31
KYA 2107 xx
6.188.7410.712.413.815.116.319.5

KYA kod
