ZBA

ZBA swivel nozzles are produced with three different types of connections: threaded, quick-fit and blind hole. The threaded nozzles are assembled to threaded swivel joints. The quick-fit types are designed for HTQ/KSQ quick-fit flat fan nozzles whereas the blind hole models are specially used in spraying processes requiring changes and pauses.

Contact us if you have any question regarding to this product.





For more information, click the pdf for data sheet.

Code
Connection

RF/RGM/FBSP/NPT

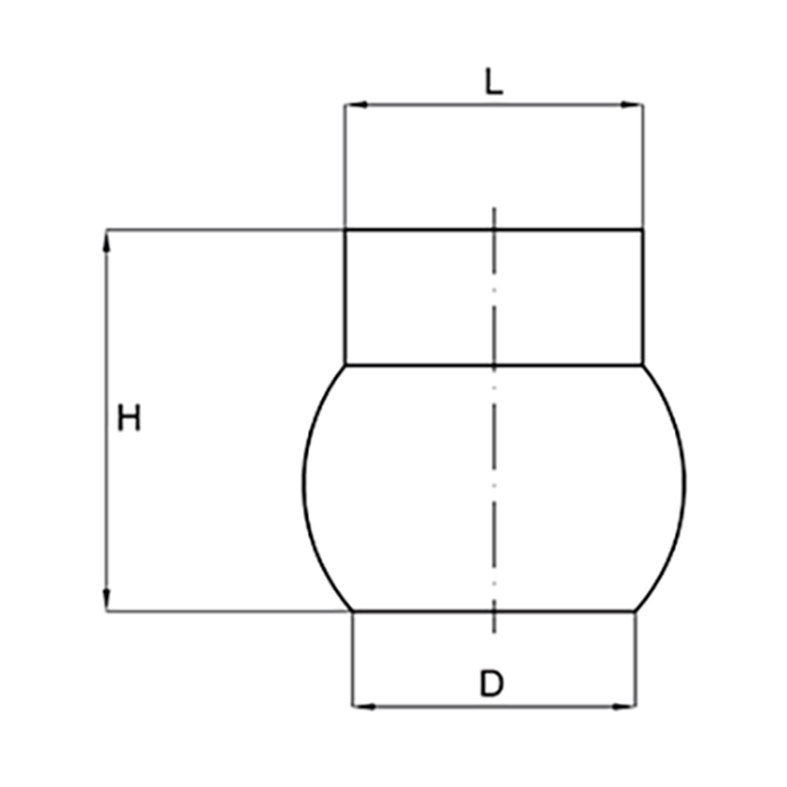

TypeL
mm		D
mm		H
mm
ZBA 0000 D5x
Cieca----
--35.017.527.5
ZBA 0039 D5
3/8"MBSP
Mobile35.020.027.3
ZBA GAT1 D5x
1/8"FBSP
Mobile35.020.027.3
ZBA GBT1 D5x
1/4"FBSP
Mobile35.020.027.3
ZBA GCT1 D5x
3/8"FBSP
Mobile35.020.027.3
ZBA GDT1 D5x
1/2"fBSP
Mobile35.020.027.3
ZBA NAT1 D5x
1/8"FNPT
Mobile35.020.027.3
ZBA NBT1 D5x
1/4"FNPT
Mobile35.020.027.3
ZBA NCT1 D5x
3/8"FNPT
Mobile35.020.027.3
ZBA NDT1 D5x
1/2"FNPT
Mobile35.020.027.3
ZBA GAT2 D5x
1/8"FBSP
Fixed27.426.035.1
ZBA GBT2 D5x
1/4"FBSP
Fixed27.426.035.1
ZBA GCT2 D5x
3/8"FBSP
Fixed27.426.035.1
ZBA GDT2 D5x
1/2"FBSP
Fixed27.426.035.1
ZBA QQN2 D6G
Quick----
Mobile35.023.427.0
