ZPB

ZPB plastic pipe clamps: These are ideal for fixing most of the PNR spray nozzle tips or any of our 3/8″ female thread nozzles. Nozzle tips such as the PNR GX, BX or KX nozzles are held in place with a simple 3/8″ cap whereas the 3/8″ female nozzles (such as the AH) simply screw straight on. Clamps are available for 1/2″ OD pipe (ZPB 0050 D6), 3/4″ OD pipe (ZPB 0075 D6) and also 1″ OD pipe (ZPB 0100 D6). A spigot to the rear of the clamp locates the clamp to the pipe and an ‘O’ ring created a water-tight seal. The body is made from polypropylene and the bolts are in 316 stainless steel. Max pressure 8 bar.

Contact us if you have any question regarding to this product.





For more information, click the pdf for data sheet.

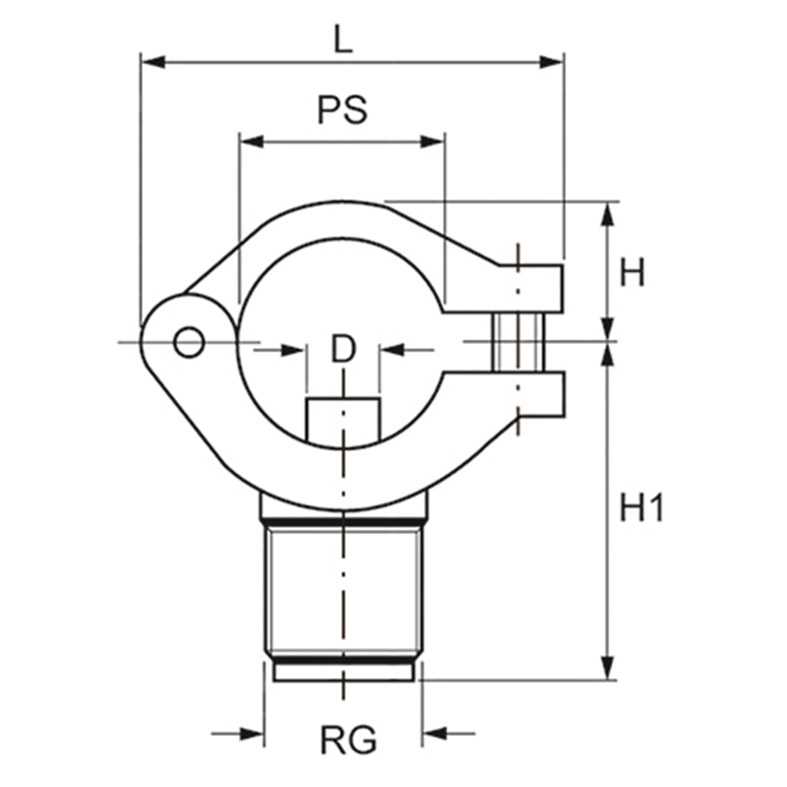

CodeRG
inch
PS
inch
OD
mm
D
mm
H
mm
H1
mm
L
mm
W
mm
ZPB 0050 D63/8"1/2"21/227.316.0364420
ZPB 0075 D63/8"3/4"26/277.317.5395126
ZPB 0100 D63/8"1"33/3410.021.0466130
ZPB 0125 D63/8"1-1/4"42/4312.035.055.085.075.0
