ZPL

Swivel Nozzle Spring Pipe Clamps

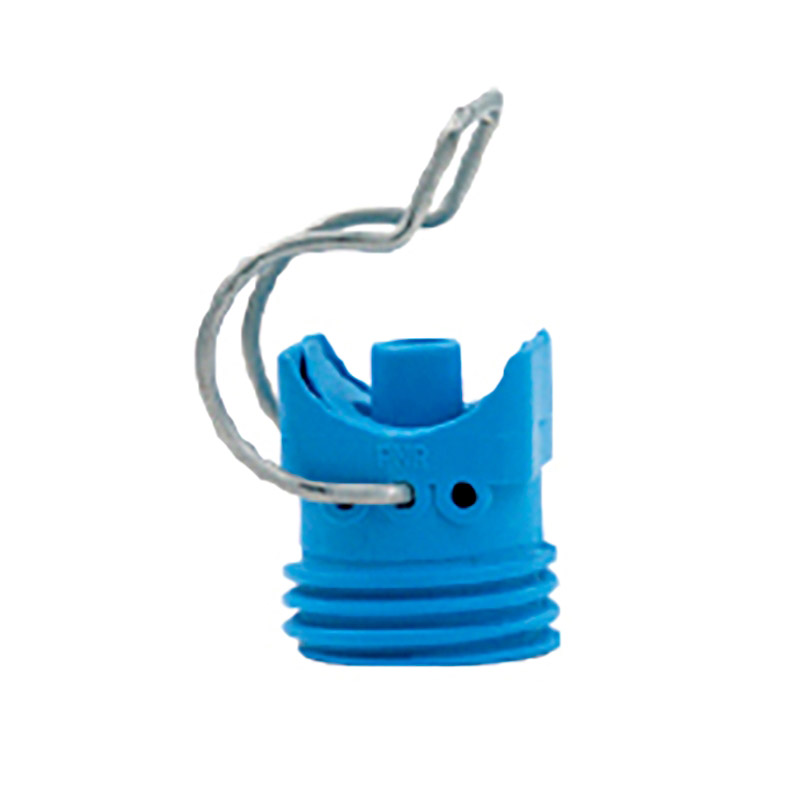

ZPL pipe clamps are specifically designed for swivel ball nozzles. Installation is simple—drill a hole in the pipe and secure the clamp using the spring(s). The clamp body is made of PP chemically bonded fiberglass, while the spring is constructed from AISI 302 or 316 stainless steel.

ZPL swivel nozzles are built to withstand high temperatures and intense operating conditions. These pipe clamps are widely used in surface pre-treatment applications.

ZPL-VAB.pdf

For more information, click the pdf for data sheet.

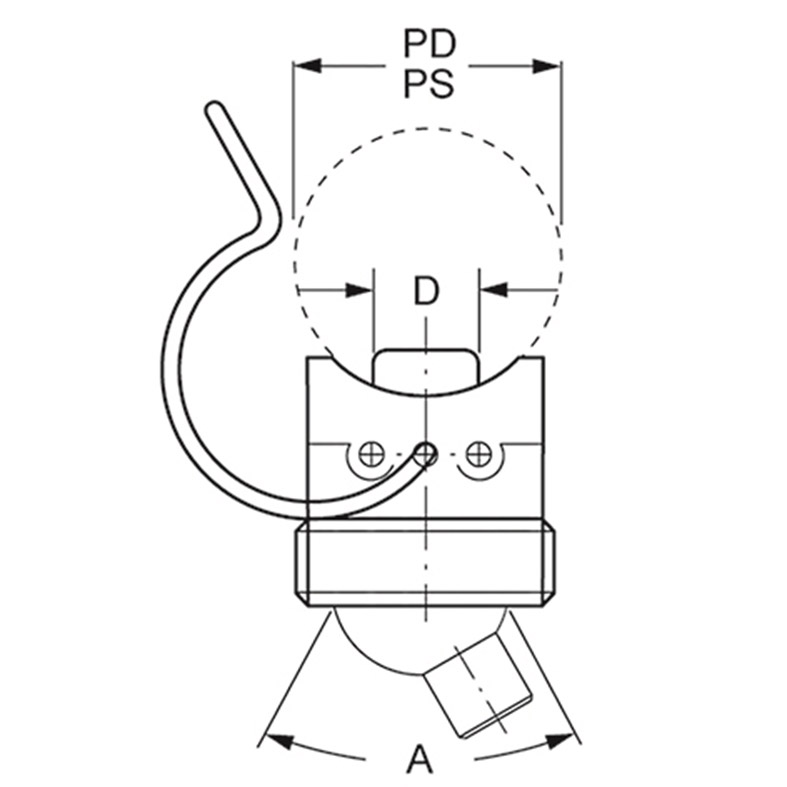

Code	PS inch	PS DN	PD mm	D mm	A deg	W g
ZPL A100 D6 XYZ	1"	25	33.4	20	40°	46/65
ZPL B100 D6 XYZ				17
ZPL C100 D6 XYZ				14
ZPL D100 D6 XYZ	1"	25	33.4	12.5	40°
ZPL A101 D6 XYZ	1"	25	32.0	20	40°	46/65
ZPL B101 D6 XYZ				17
ZPL C101 D6 XYZ				14
ZPL A125 D6 XYZ	1 1/4"	32	42.2	20	40°	46/65
ZPL B125 D6 XYZ				17
ZPL C125 D6 XYZ				14
ZPL A126 D6 XYZ	1 1/4"	32	40	20	40°	46/65
ZPL B126 D6 XYZ				14
ZPL C126 D6 XYZ				17
ZPL A150 D6 XYZ	1 1/2"	40	48.3	20	40°	46/65
ZPL B150 D6 XYZ				17
ZPL C150 D6 XYZ				14
ZPL A200 D6 XYZ	2"	50	60.3	20	40°	46/65
ZPL B200 D6 XYZ				17
ZPL C200 D6 XYZ				14
