VEH

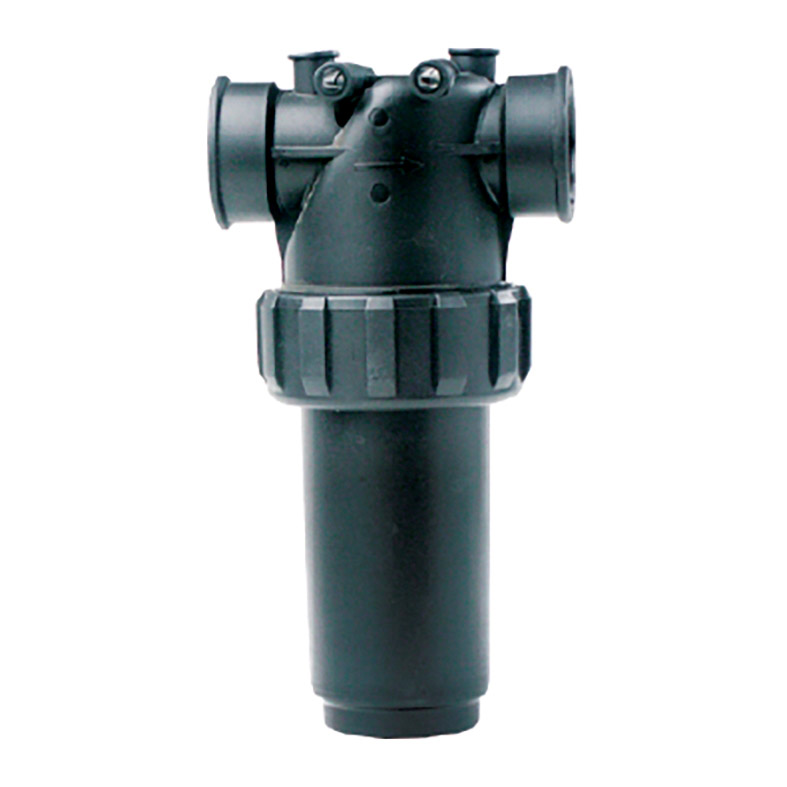

VEH plastic bodied (polypropylene) inline filters are a cost effective solution for most applications. The large ergonomic grip between bowl and head allows for quick and easy cleaning or replacement of filter cartridges. The flow of liquid is not interrupted during operation due to the large available mesh surface area for filtering. VEH filters are available in ½”, ¾”, 1”, 1 ¼” or 1 ½” BSPP with 32, 50 or 100 mesh cartridges.

VEH-VEL.pdf

Contact us if you have any question regarding to this product.

Send

For more information, click the pdf for data sheet.

Code	RF inch BSPP	H mm	H1 mm	L mm	Q mm	Cartridge	M mesh
8105037 VEH 0051 D25	1/2"	110.7	92.7	84	55		50
8105039 VEH 0052 D25		110.7	92.7	84	55		100
8105000 VEH 0050 D21	1/2"	126	108	127	80	XVE H450 D21T	32
8105037 VEH 0051 D21		126	108	127	80	XVE H451 D21T	50
8105039 VEH 0052 D21		126	108	127	80	XVE H452 D21T	100
8105024 VEH 0075 D21	3/4"	126	108	127	100	XVE H450 D21T	32
8105025 VEH 0076 D21		126	108	127	100	XVE H451 D21T	50
8105027 VEH 0077 D21		126	108	127	100	XVE H452 D21T	100
8121000 VEH 0125 D21	1 1/4"	265	237	168	200	XVE HA60 DA2	32
8121001 VEH 0126 D21		265	237	168	200	XVE HA61 DA2	50
8121003 VEH 0127 D21		265	237	168	200	XVE HA62 DA2	100
8121004 VEH 0150 D21	1 1/2"	265	237	168	280	XVE HA60 DA2	32
8121995 VEH 0151 D21		265	237	168	280	XVE HA61 DA2	50
8121007 VEH 0152 D21		265	237	168	280	XVE HA62 DA2	100
