ZRP

ZRP triangular flanged swivel joints are a shorter design and are ideal for processes where space is limited. These adjustable swivel joints are also fairly robust and easy to fit. They offer versatility and are widely used in all sorts of industrial applications. There is a good choice of inlet and outlet thread connections to adapt a whole cross section of our spray nozzle range. Available in 303 stainless steel, 316 stainless steel and also in brass. Maximum working pressure of 15 bar.

ZRP-ZRQ.pdf

Contact us if you have any question regarding to this product.

Send

For more information, click the pdf for data sheet.

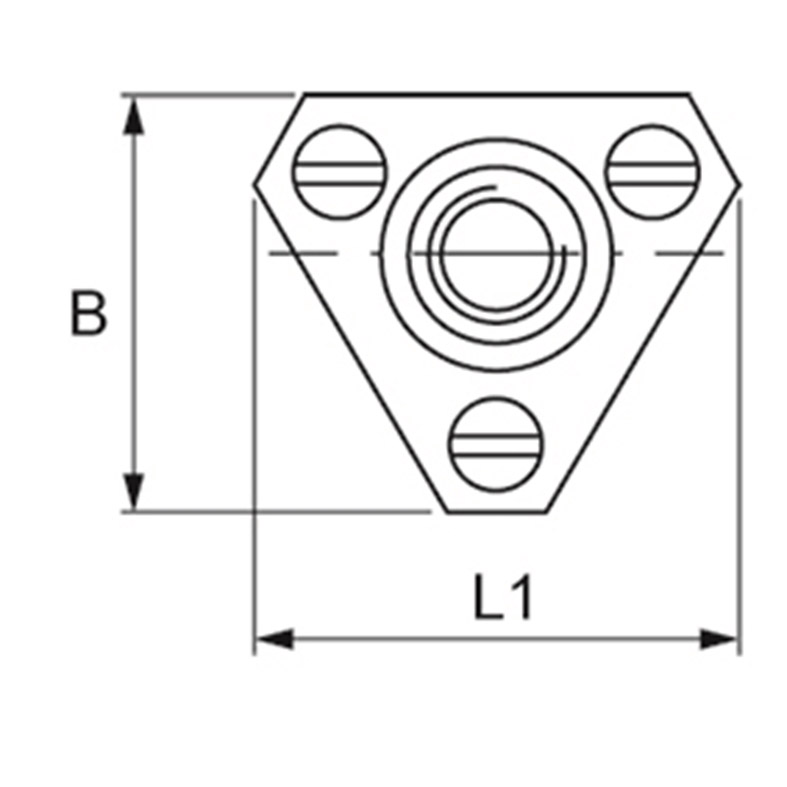

Code	RG inch	RF inch	L mm	B mm	L1 mm	A deg	W g
ZRP 1212 xx	1/8"	1/8"	30	40	35	50°	65
ZRP 2512 xx	1/4"	1/8"	32				92
ZRP 2525 xx	1/4"	1/4"	40	50	45	60°	140
ZRP 2538 xx	1/4"	3/8"	40				150
ZRP 3825 xx	3/8"	1/4"	40				150
ZRP 3838 xx	3/8"	3/8"	40				150
