KS

Flat Fan Nozzles

FLAT FAN NOZZLE WITH QUICK-FIT

The KS/QQ flat fan nozzle produces a flat spray pattern with a 50° or 60° deflection spray angle, delivering up to 60% more impact at a given feed pressure compared to standard turbulence flat fan nozzles. Its innovative design ensures optimal efficiency for deep cleaning, while the quick-fit connection makes assembly easy and prevents leakage. Flow rates are color-coded for easy identification and selection. The nozzles are made from high-quality PP and chemically bonded fiberglass, providing stability at high temperatures and resistance to chemicals. These nozzles are widely used in surface pre-treatment processes.

KSQQ-HTQQ.pdf

For more information, click the pdf for data sheet.

Angle

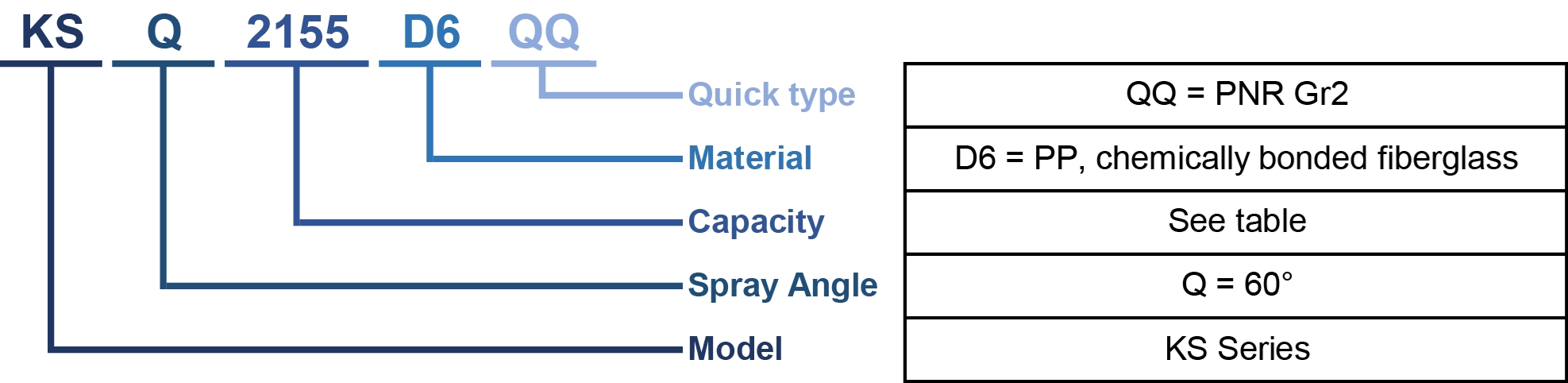

Code

Capacity (l/min) at different pressure values (bar)
0.5	1.0	1.5	2.0	2.5	3.0

Color

W
g

50°

KSN 2155 D6QQ

6.2

8.8

10.8

12.5

14.1

15.5

Red

KSN 2195 D6QQ

7.8

11.00

13.5

15.6

17.8

19.5

Green

KSQ 2230 D6QQ

9.5

13.5

16.5

19.1

21.0

23.0

Blue

KSQ 2270 D6QQ

10.9

15.4

18.8

21.7

24.6

27.0

Sky Blue

KSQ 2337 D6QQ

13.9

19.6

24.0

27.7

30.8

33.7

White

KSQ 2390 D6QQ

15.9

22.5

27.6

31.8

35.6

39.0

Orange

KSQ 2410 D6QQ

16.7

23.6

29.0

33.5

37.4

41.0

Pink

KSQ 2433 D6QQ

17.7

25.0

30.6

35.3

39.5

43.3

Brown
