BR/BS/BT/BU

X-VANE, NARROW SPRAY ANGLE

he BR BS BT BU full cone nozzle generates a solid cone spray with a round pattern, where large water droplets are concentrated within a narrow spray angle to maximize impact force per unit area. Available spray angles include 15° and 30°, with options for male or female threaded connections. The BR/BS nozzles consist of three parts, designed for easy disassembly and cleaning in case of clogging.

BR-BS-BT-BU.pdf

For more information, click the pdf for data sheet.

Spray Angle 15°

BRB
Female

BSB
Male

BUB
Female

Code

RF RG
inch

D
mm

Capacity (l/min) at different pressure values (bar)
1.0	2.0	3.0	5.0	10

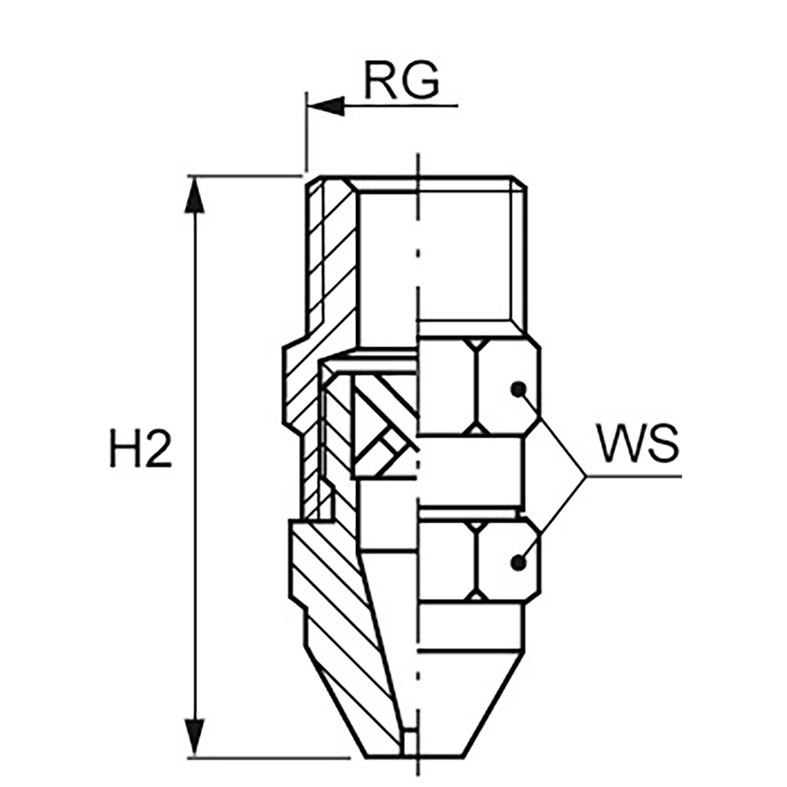

Dimension mm
DIA	H1	H2	WS

●

1270 xx

1/8"

1.6

1.56

2.20

2.70

3.49

4.93

●

1550 xx

2.3

3.18

4.49

5.50

7.10

10.0

●

2117 xx

1/4"

3.2

6.75

9.55

11.7

15.1

21.4

●

2196 xx

3/8"

4.2

11.3

16.0

19.6

25.3

35.8

●

2352 xx

1/2"

5.6

20.3

28.7

35.2

45.4

64.3

●

2587 xx

3/4"

7.8

33.9

47.9

58.7

75.8

107

●

3110 xx

10.2

63.5

89.8

110

142

201

●

3168 xx

1 1/4"

12.6

97.0

137

168

217

307

117

●

3245 xx

1 1/2"

15.1

141

200

245

316

447

127

●

3450 xx

22.0

260

367

450

581

822

183

●

3680 xx

2 1/2"

26.0

393

555

680

878

1242

223

●

3980 xx

31.0

566

800

980

1265

1789

105

268

100

Spray Angle 30°

BRF
Female

BSF
Male

BTF
Female

Code

RF RG
inch

D
mm

Capacity (l/min) at different pressure values (bar)
1.0	2.0	3.0	5.0	10

Dimension mm
DIA	H1	H2	WS

●

0980 xx

1/8"

1.0

0.57

0.80

0.98

1.27

1.79

●

1160 xx

1.2

0.92

1.31

1.60

2.07

2.92

●

1270 xx

1.6

1.56

2.20

2.70

3.49

4.93

●

1350 xx

1/4"

1.8

2.02

2.86

3.50

4.52

6.39

●

1550 xx

3/8"

2.3

3.18

4.49

5.50

7.10

10.0

●

2117 xx

1/2"

3.2

6.75

9.55

11.7

15.1

21.4

●

2195 xx

3/4"

4.2

11.3

15.9

19.5

25.2

35.6

●

2270 xx

5.1

15.6

22.0

27.0

34.9

49.3

●

2390 xx

6,1

●

2590 xx

1 1/4"

7.4

34.1

48.2

59.0

76.2

108

127

●

2780 xx

8.6

45.0

63.7

78.0

101

142

●

2980 xx

1 1/2"

9.6

56.6

80.0

98.0

127

179

155

●

3117 xx

10.5

67.5

95.5

117

151

214

●

3137 xx

11.1

79.1

112

137

177

250

200

●

3156 xx

11.9

90.1

127

156

201

285

●

3195 xx

13.5

113

159

195

252

356

●

3235 xx

2 1/2"

14.7

136

192

235

303

429

264

●

3275 xx

15.9

159

225

275

355

502

●

3390 xx

19.1

225

318

390

503

712

●

3430 xx

19.8

248

351

430

555

785

●

3470 xx

20.6

271

384

470

607

858
