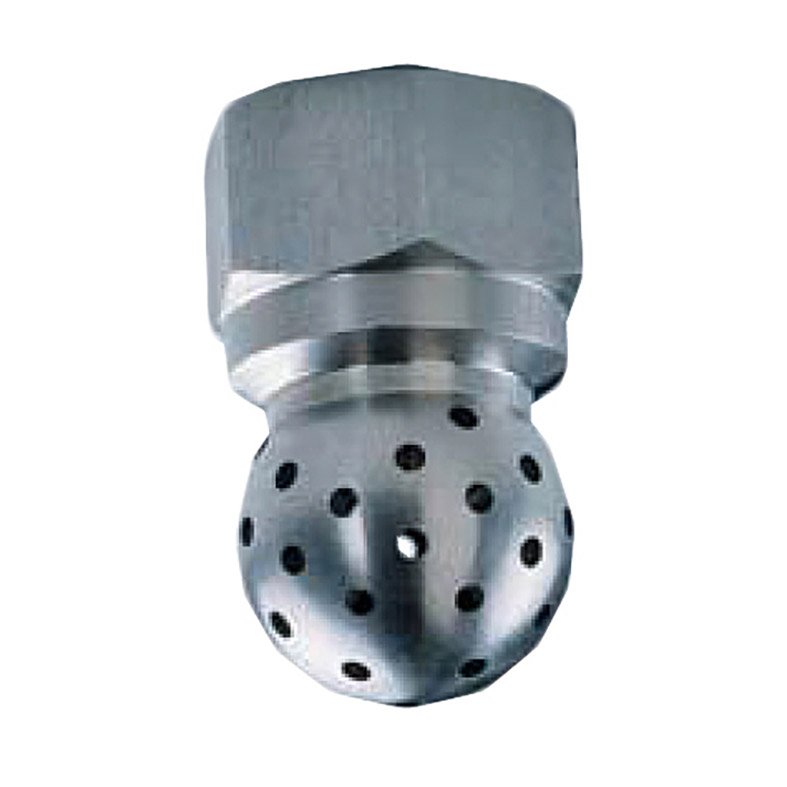

UAB

UAB fixed cleaning heads are very compact and good for applications such as pipe and duct cleaning and where tight spaces or small vessels need cleaning. As they are machined from thick rods of stainless steel the wall thickness can withstand quite high pressures. Available with a 1/2″ female thread and with 240° spray coverage.

For more information, click the pdf for data sheet.

CodeD1
mm
D
mm
Capacity (l/min) at different pressure values (bar)
2.03.04.05.0
UAB 2220 xxSG0.826
18.022.025.328.5
UAB 2343 xxSG1.026
28.034.339.544.3
UAB 2700 xxSG1.526
57.070.080.590.3
UAB 3110 xxSG2.026
90.0110126142
UAB 3145 xxSG2.326
118145167187
